Our products

Products that perform

Reliable motor starters, panels, and switchgear — built and certified for Indian industry since 1966.

Three Phase Panels
Three Phase Panels - Image 2
Three Phase Panels - Image 3

Three Phase Panels

Reliable single-phase submersible pump controller ensuring safe operation, overload protection, low-voltage performance, and durability.

Business Type Manufacturer, Exporter, Supplier
Body Metal Metal
Power 1-10 HP
Voltage 360V -415V
Automatic Grade Manual
Phase Three
MoQ 10 Pieces
Category:
Order on WhatsApp

Description

Our 3 Phase Control Panels are engineered to deliver reliable protection, precise control, and long-lasting performance for three-phase submersible pump systems. Designed for demanding domestic, agricultural, and industrial applications, these panels ensure safe motor operation under varying power conditions.

Key Protection Features

The panel offers comprehensive motor protection against:

  • Single Phasing – Instantly trips the motor during phase failure
  • Overload Conditions – Accurate thermal bimetallic overload relay prevents motor damage
  • Phase Reversal – Protects motors from reverse running
  • Dry Run Protection – Automatically trips when water level drops below probe points
Additionally, the panel provides a clear healthy supply connection indication for safe operation.

Three Phase Panels

🔍
Three Phase Panels

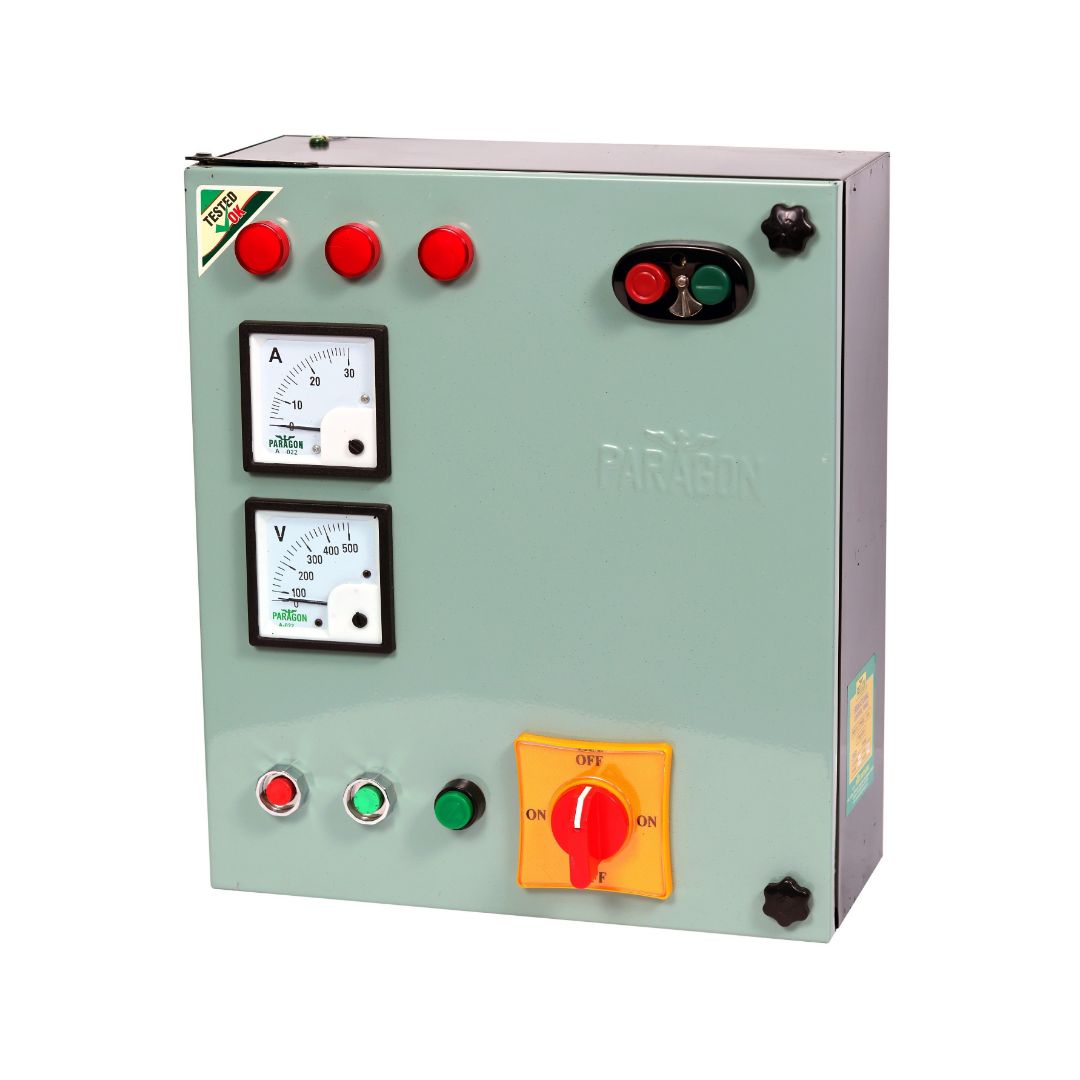

PCP-1

×
Three Phase Panels

PCP-1

Features

  • It protects the motor from single phasing.
  • It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay.
  • It also protects the submersible pump set motor by tripping instantly when the Water level decreases below the two dry run probe points.
  • It is provided with an amps meter to read the exact current drawn by the motor and an volt meter with a push-to-on button.
  • It is also provided with three individual phase indication neon lamps to make the user know which one of these phases have failed.
  • A separate auto start can also be provided on demand, which is capable of restarting the panel automatically once the power in all the three phases resumes back.
🔍
Three Phase Panels

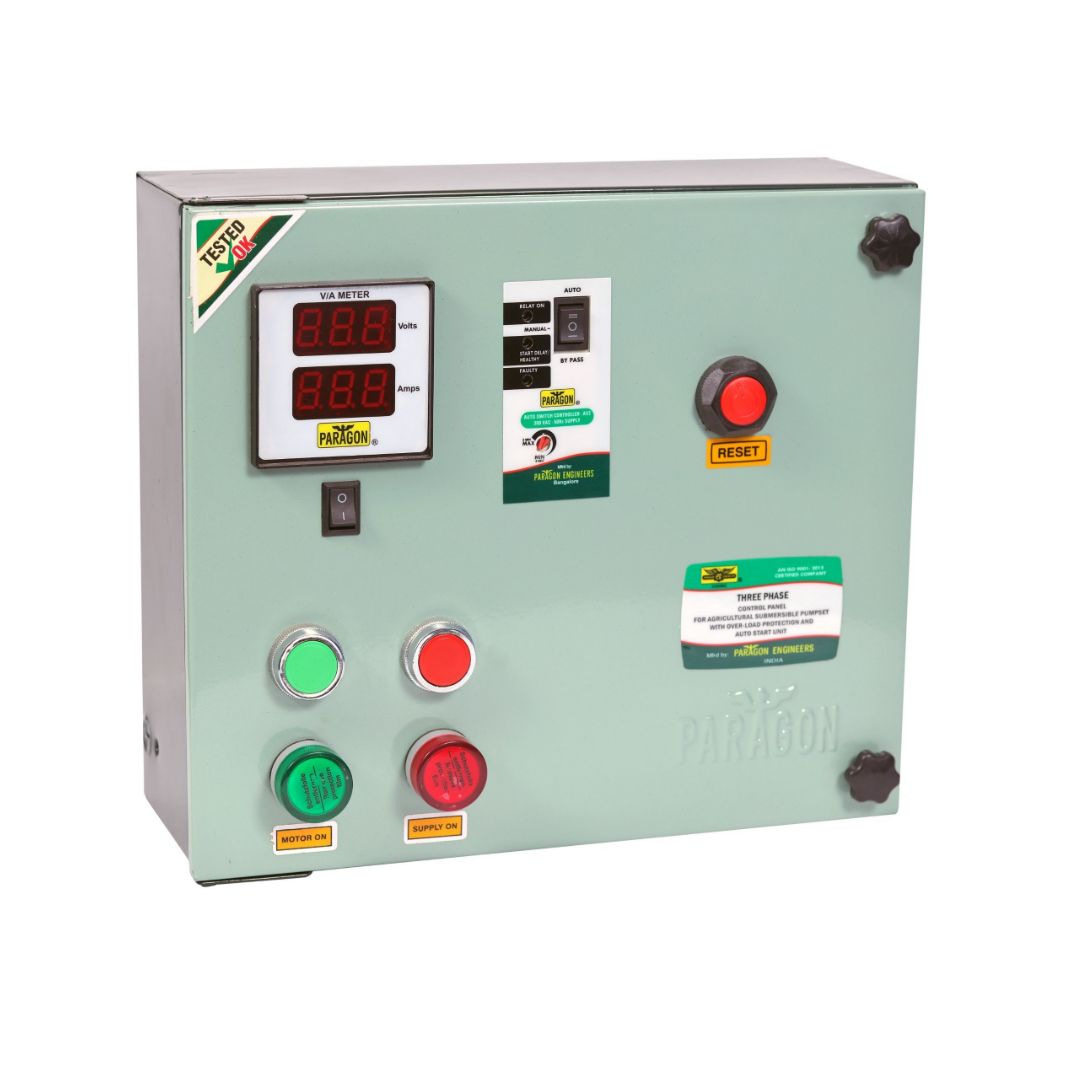

PCP-2

×
Three Phase Panels

PCP-2

Features

  • It protects the motor from single phasing.
  • It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay.
  • It comes with Digital ampere and volt Meter.
  • Fitted with Auto control switch preventing Motor from high And Low voltage , Auto starts after 30seconds of power resumption, Instant tripping due to phase failure.
🔍
Three Phase Panels

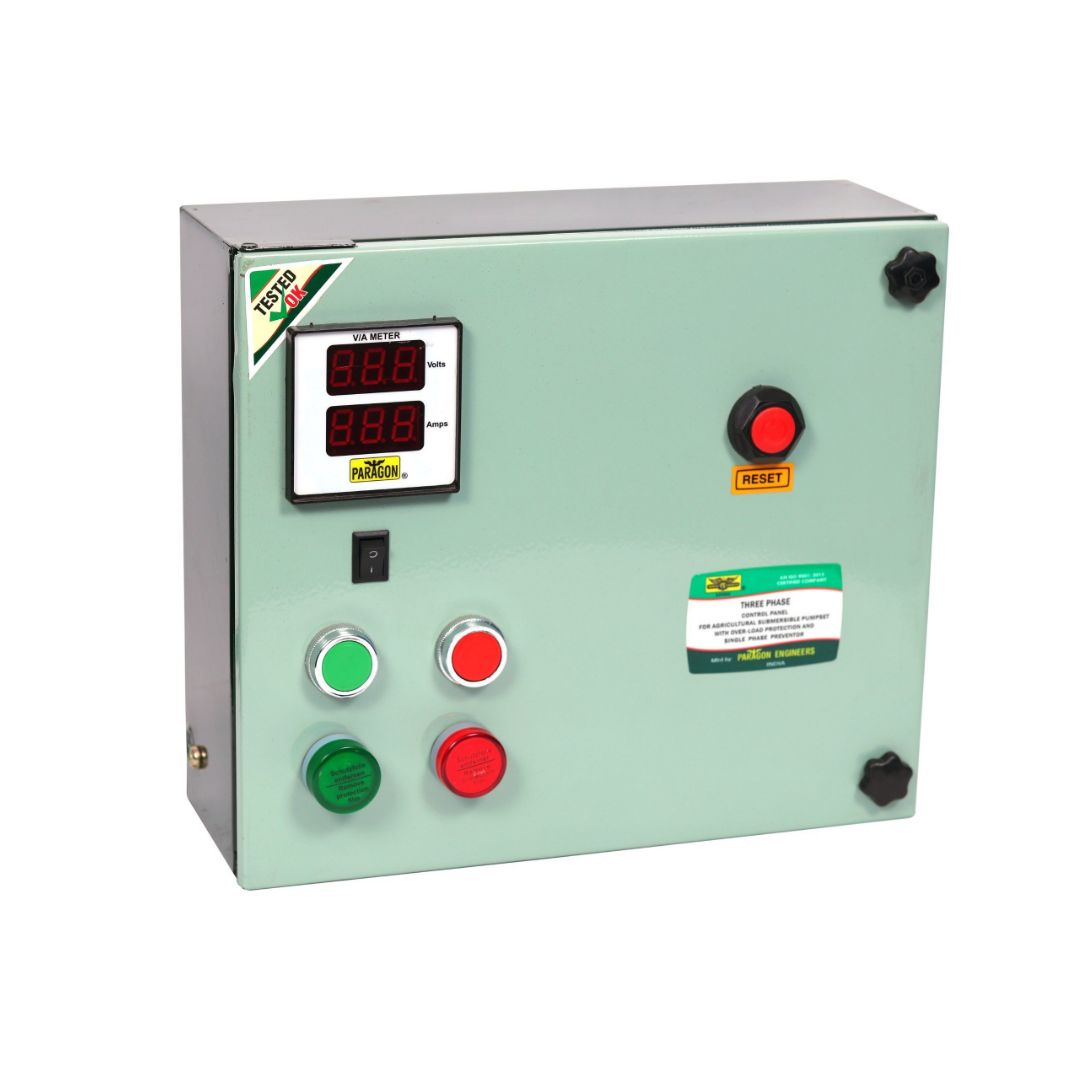

PCP-3

×
Three Phase Panels

PCP-3

Features

  • It protects the motor from single phasing.
  • It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay.
  • It also protects the submersible pump set motor by tripping instantly when the Water level decreases below the two dry run probe points.
  • It is provided with a digital dual Amp and volt meter to measure the exact voltage and current drawn by the motor.
  • A separate auto start can also be provided on demand, which is capable of restarting the panel automatically once the power in all the three phases resumes back.
🔍
Three Phase Panels

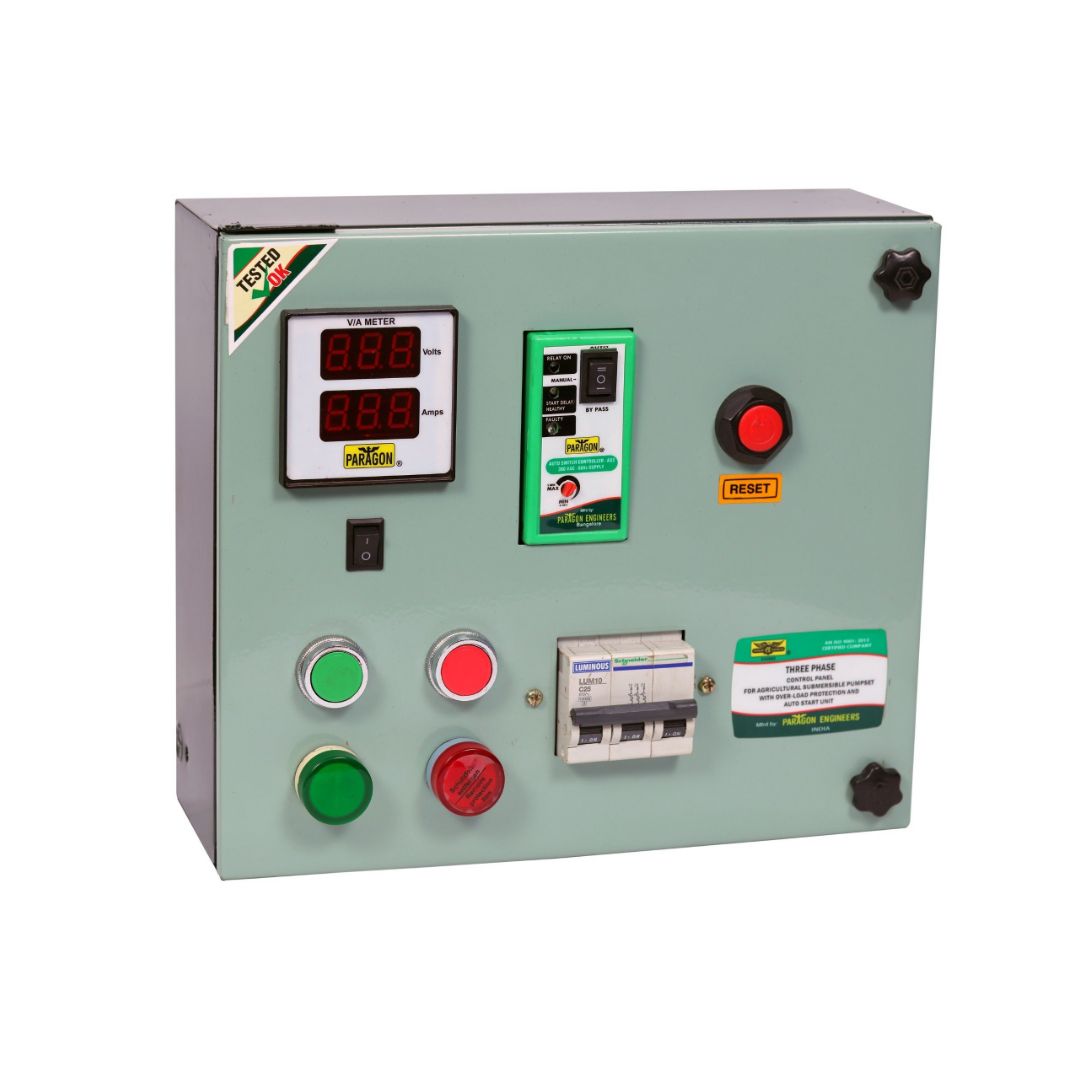

PCP-4

×
Three Phase Panels

PCP-4

Features

  • It protects the motor from single phasing.
  • It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay.
  • It comes with Digital ampere and volt Meter.
  • It is fitted with 63A MCB for the safety of Motor
🔍
Three Phase Panels

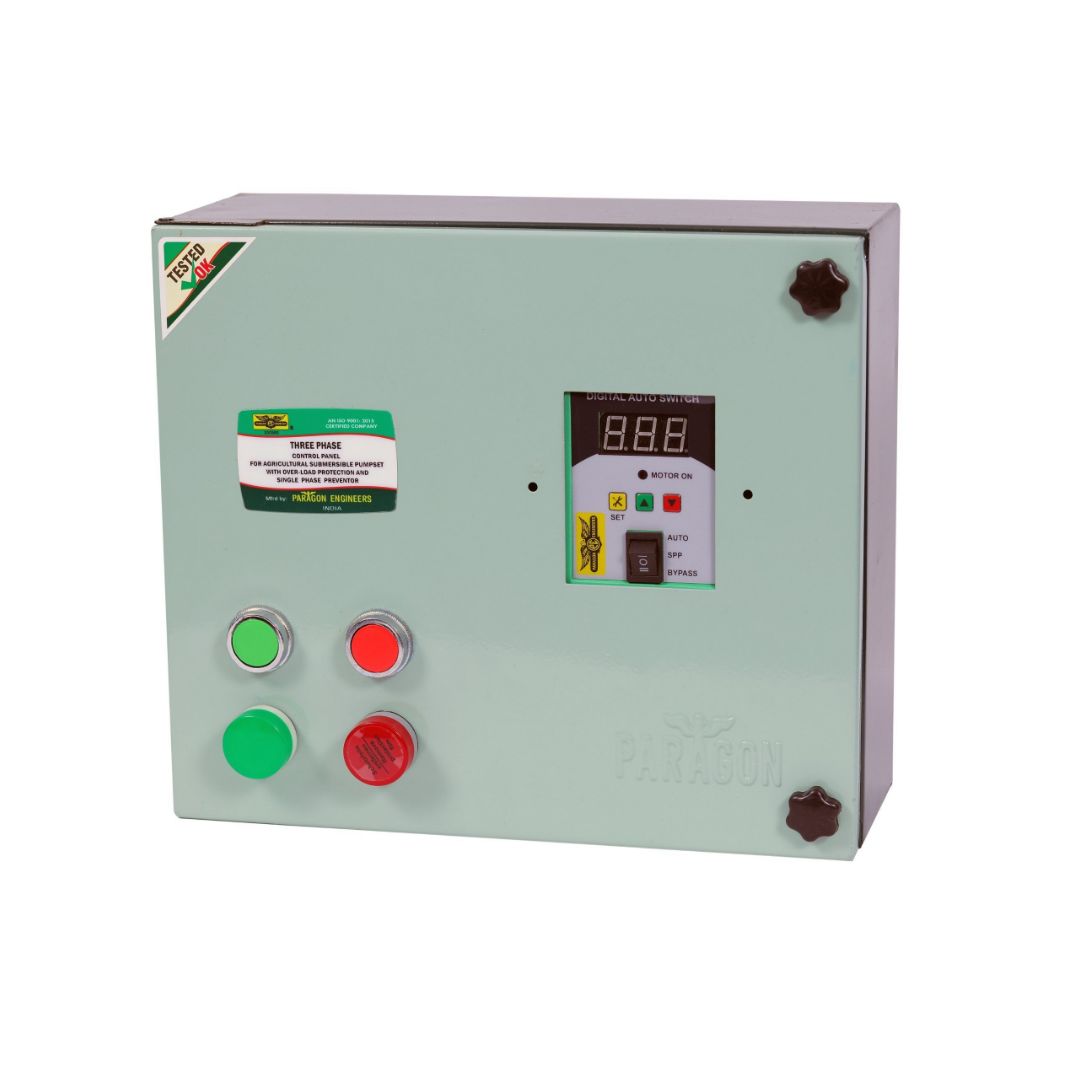

PCP-5

×
Three Phase Panels

PCP-5

Features

  • Comes with Auto controller which prevents Motor from burnout caused by Single phasing,phase reversal,Dry Run,Low and High Voltage,high Current by instantly tripping the panel caused due to above reasons.
  • It can restart the Motor automatically after 30seconds of power resumption provided all 3 phases of supply are restored.
  • You can set time as for how long the motor should operate.
  • Dry run protection.
🔍
Three Phase Panels

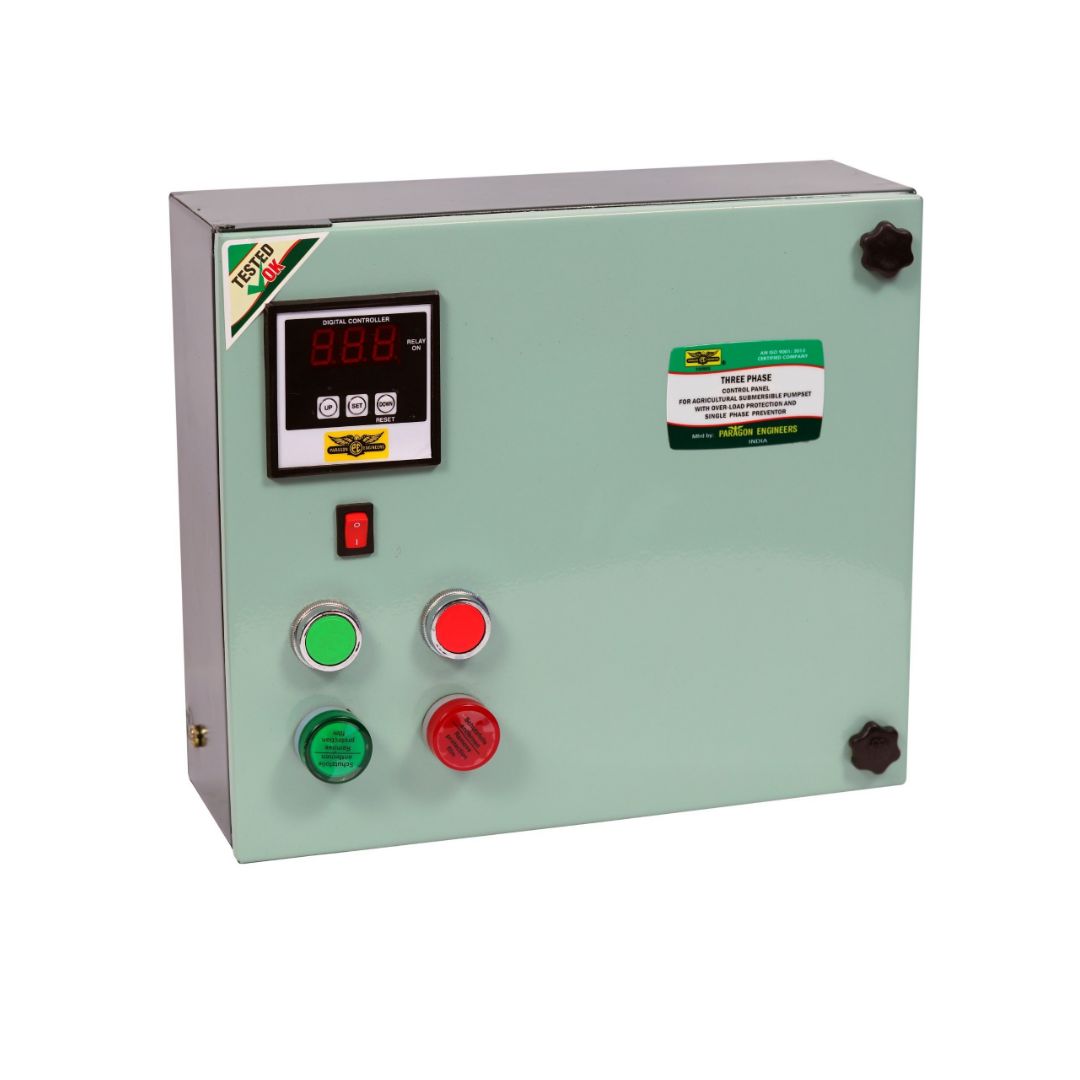

PCP-6

×
Three Phase Panels

PCP-6

Features

  • It protects the motor from single phasing.
  • It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay.
  • It protects the motor from dry run.
  • It prevents the motor from burnout caused due to over load Current ,under voltage and high voltage .
  • It comes with built in timer for switching off the motor after the runtime set is completed.
🔍
Three Phase Panels

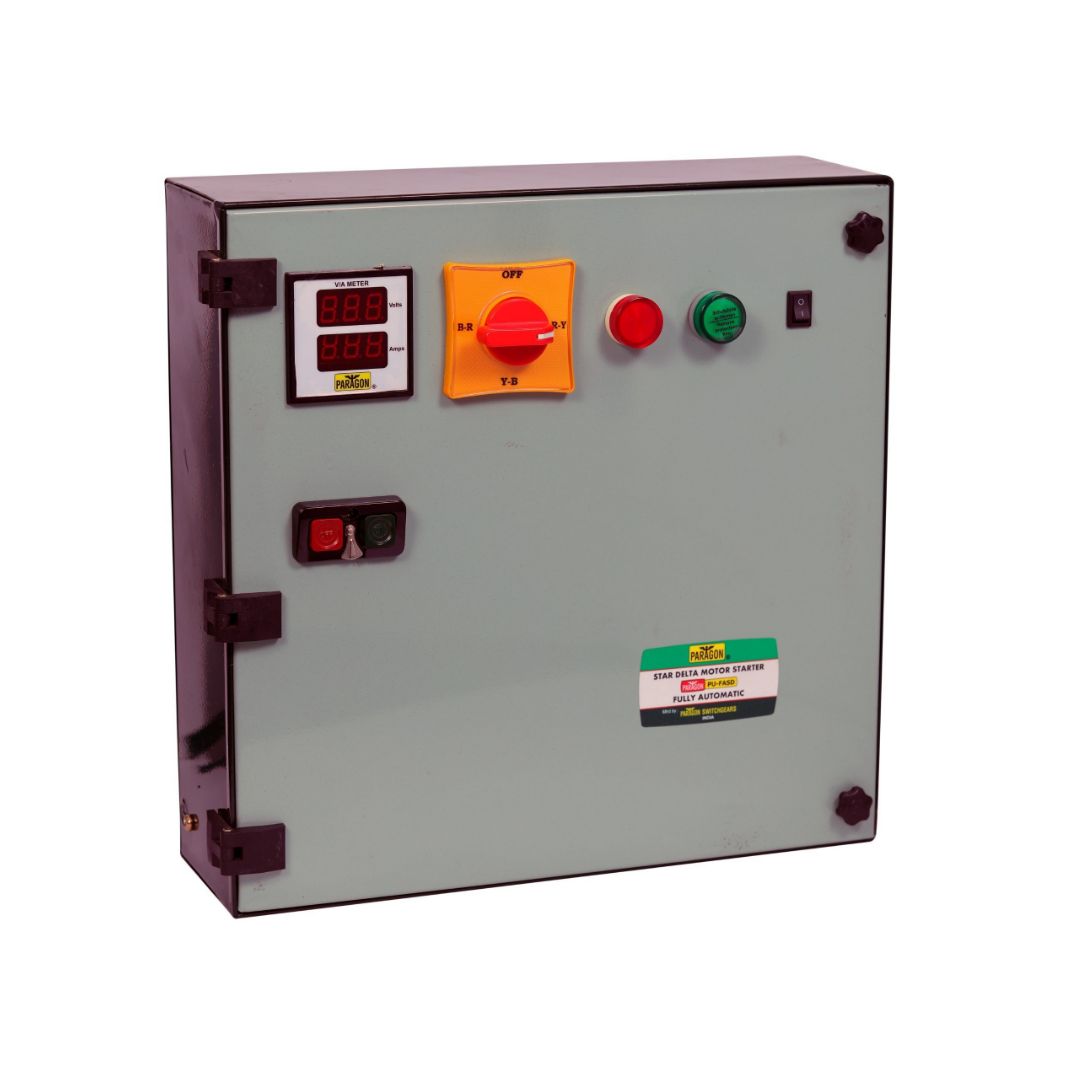

Stardelta Control Panel

Star-Delta control panel ensures smooth motor starting with reliable overload protection.

×
Three Phase Panels

Stardelta Control Panel

Features :
  • Protection from Single – Phasing
  • Protection from Overload Conditions
  • Protection from Phase Reversal
  • Protection from Phase Unbalance
  • PU Contrator with moulded coil
  • Wide band coil, operates from – 50% to 110% rated coil voltage(e.g. 30 V coil operates from 180V to 410V)
  • Indication of healthy supply connection
  • Auto Restart (5-300sec ON delay)
  • Power ON & Pump ON indication
  • Digital Dual Volt-ammeter
  • Easy replacement of spares
  • Terminal block for easy termination

    • Applications

  • Borewell Submersible water pumps
  • Open well submersible pumps
    • 🔍
    Three Phase Panels

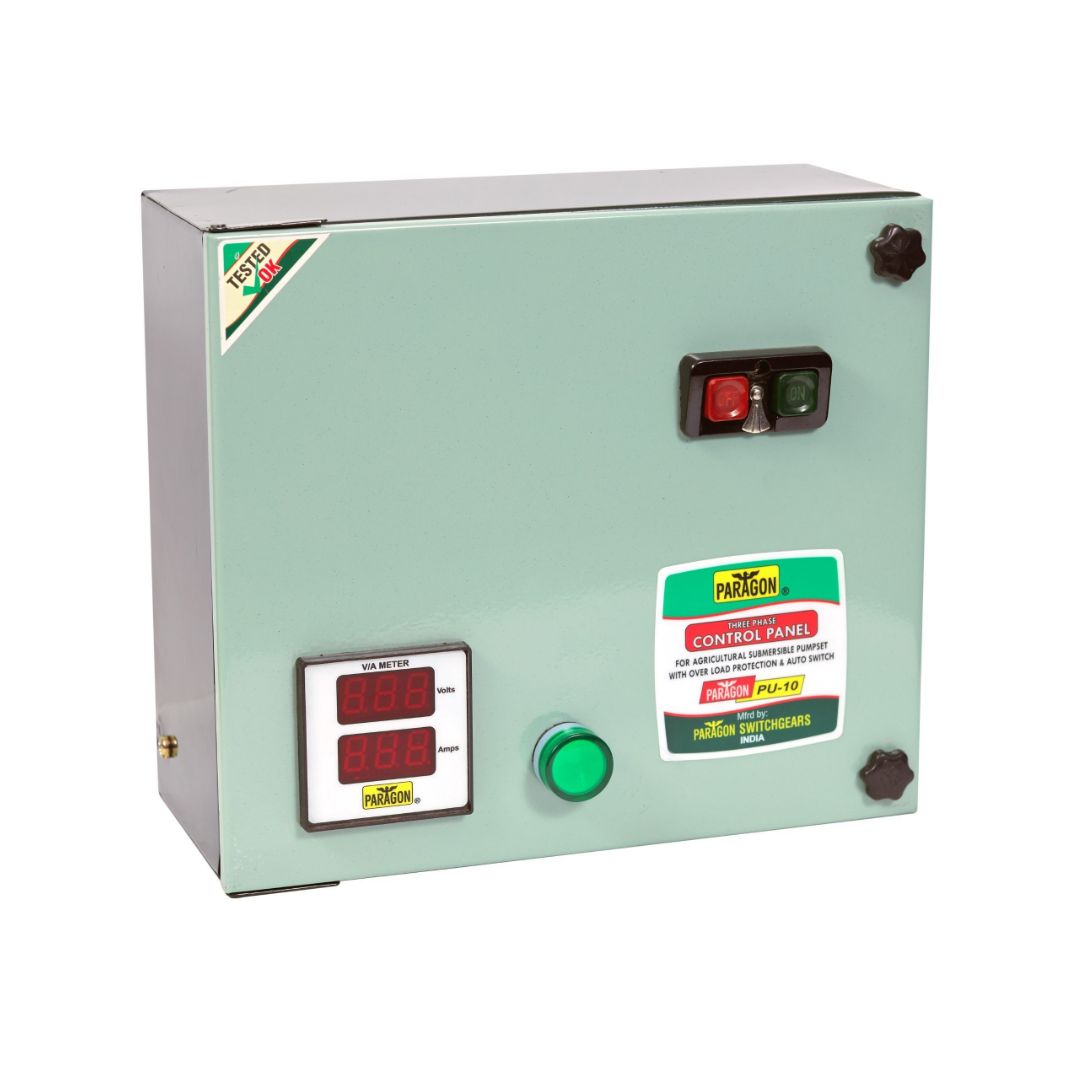

    PU-10

    Reliable three-phase control panel with complete motor protection for submersible pumps.

    ×
    Three Phase Panels

    PU-10

    Features :

    • Protection from
      Single - Phasing
      Overload Conditions
      Phase Reversal
    • Indication of healthy supply connection
    • PU Contactor with moulded coil

    Applications :

    • Borewell Submersible water pumps
    • Open well submersible pumps
