Our products

Products that perform

Reliable motor starters, panels, and switchgear — built and certified for Indian industry since 1966.

Capacitors
Capacitors - Image 2

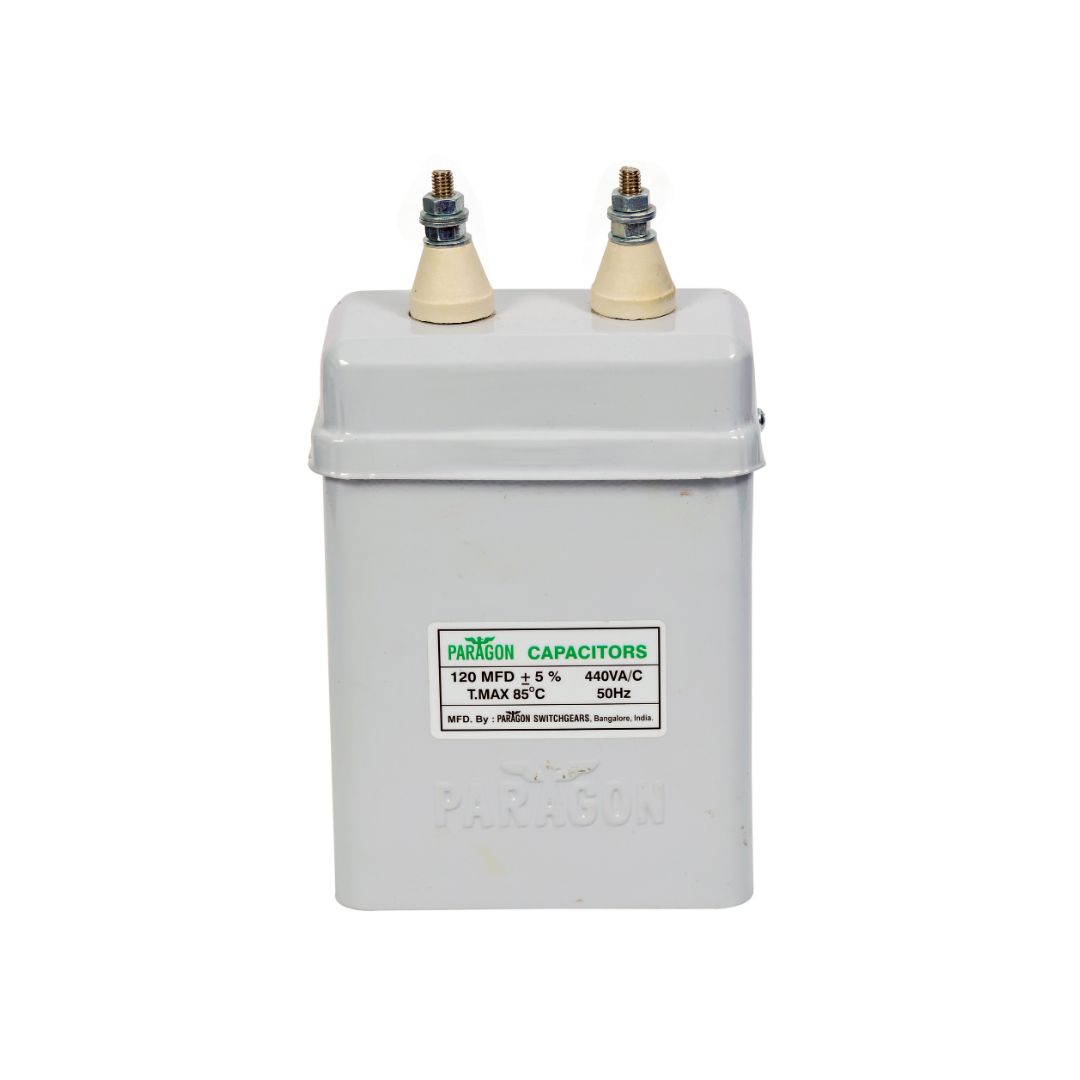

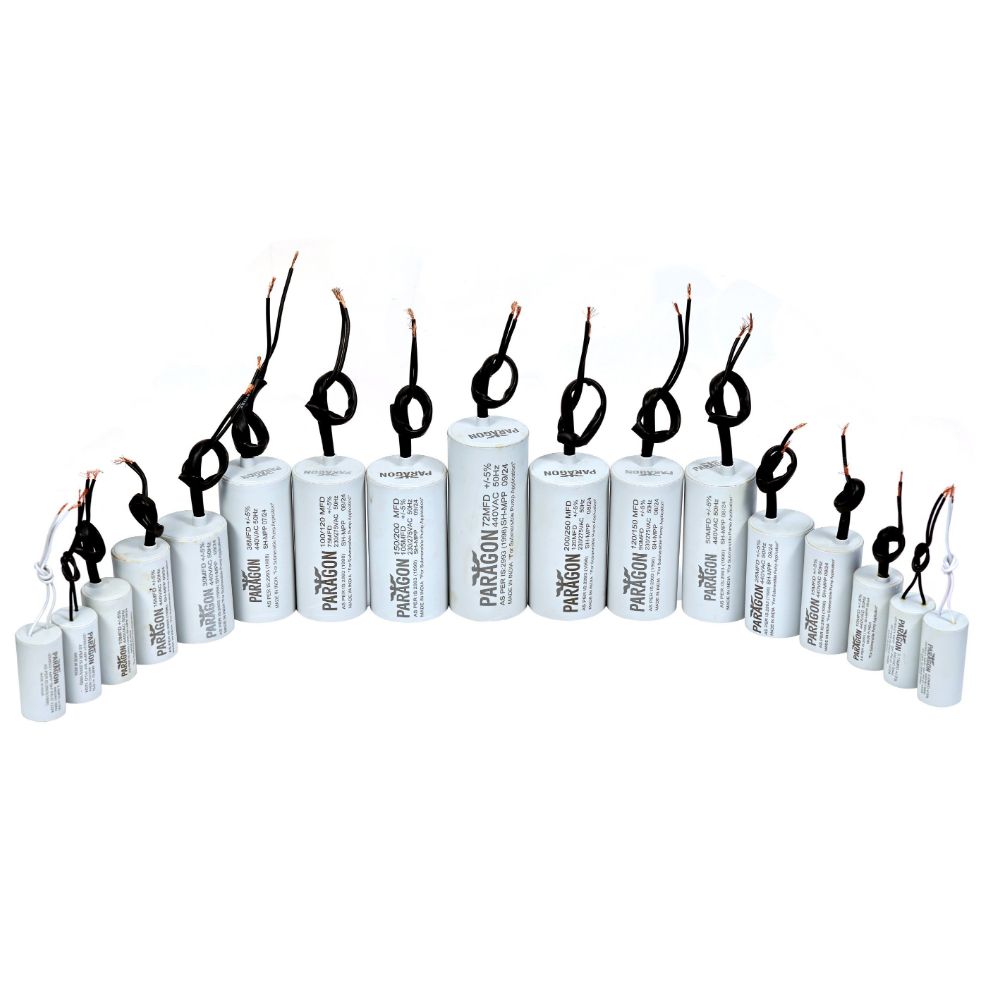

Capacitors

Motor start and run capacitors from Paragon, built for reliable single-phase motor performance — StartCap 250V Series (60–250 MFD) for high starting torque and RunCap 440V Series (6–72 MFD) for continuous, energy-efficient running.

Business Type Manufacturer, Exporter, Supplier
Voltage 500V
Frequency 50Hz, 60Hz
MCQ 100
Category:
Order on WhatsApp

Description

Paragon’s capacitors power reliable motor performance. StartCap 250V Series delivers strong starting torque for quick, efficient motor start-up, while RunCap 440V Series ensures smooth, continuous operation for pumps, compressors, and industrial motors. Built to IS 2993 standards with ±5% tolerance, both are also available as per customer specification.

Capacitor Types We Offer

🔍
Capacitors

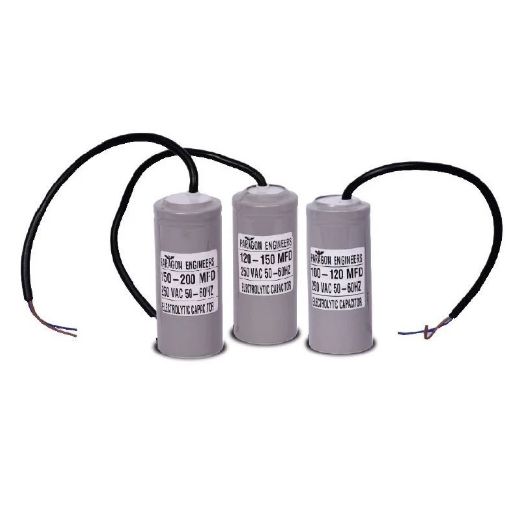

START CAP-250V Series

Heavy-duty start capacitors delivering strong starting torque for quick, reliable single-phase motor start-up.

×
Capacitors

START CAP-250V Series


Motor Start Capacitors briefly increase motor starting torque and allow a motor to be cycled
on and off rapidly. A start capacitor stays in the circuit long enough to rapidly bring the
motor up to a predetermined speed, which is usually about 75% of the full speed, and is then
taken out of the circuit, often by a centrifugal switch that releases at that speed. Afterward
the motor works more efficiently with a run capacitor. StartCap 250V Series Capacitors are
manufactured in PP Cylindrical case and designed for use in any motor start Application.

🔍
Capacitors

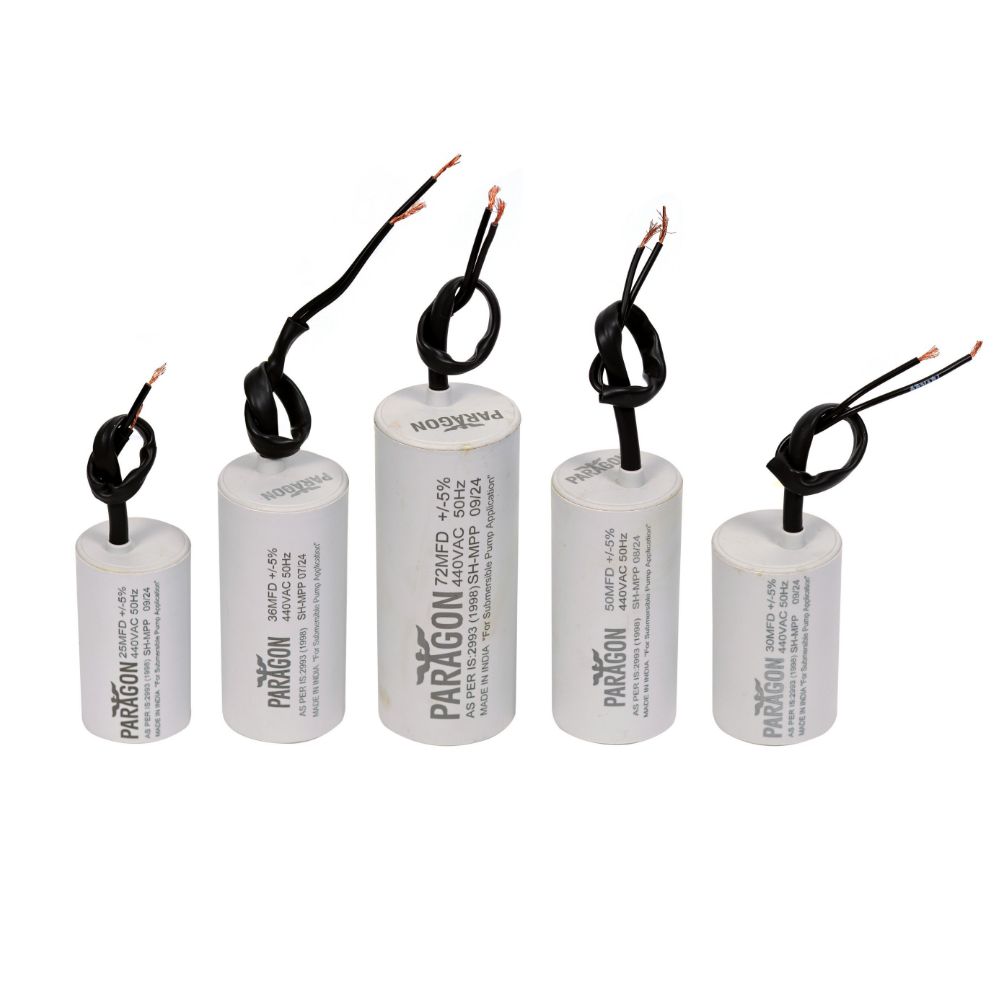

Run Cap 440V Series

Continuous-duty run capacitors ensuring smooth, energy-efficient operation for pumps, compressors, and industrial motors.

×
Capacitors

Run Cap 440V Series

Single – phase Ac electric motor require a “ Run Capacitor “ to energize the second-phase
winding (auxiliary coil) to create rotating magnetic field while the motor is running. Motor
Run capacitors are designed for continuous duty while the motor is powered. Run
capacitors are mostly polypropylene film capacitors and are energized the entire time the
motor is running. Motor Run capacitors are usable for general sine wave applications as
Filters, Inverters, UPS Devices etc., but are also particularly suitable for the operation of
asynchronous electric motors and electric compressors. As motor run capacitors they
assure smooth and energy-saving operation of electric motors used in applications such as
refrigerators, freezers, electric compressors, washers, dryers, air-conditioning appliances,
ventilators, pumps & Industrial Motors
